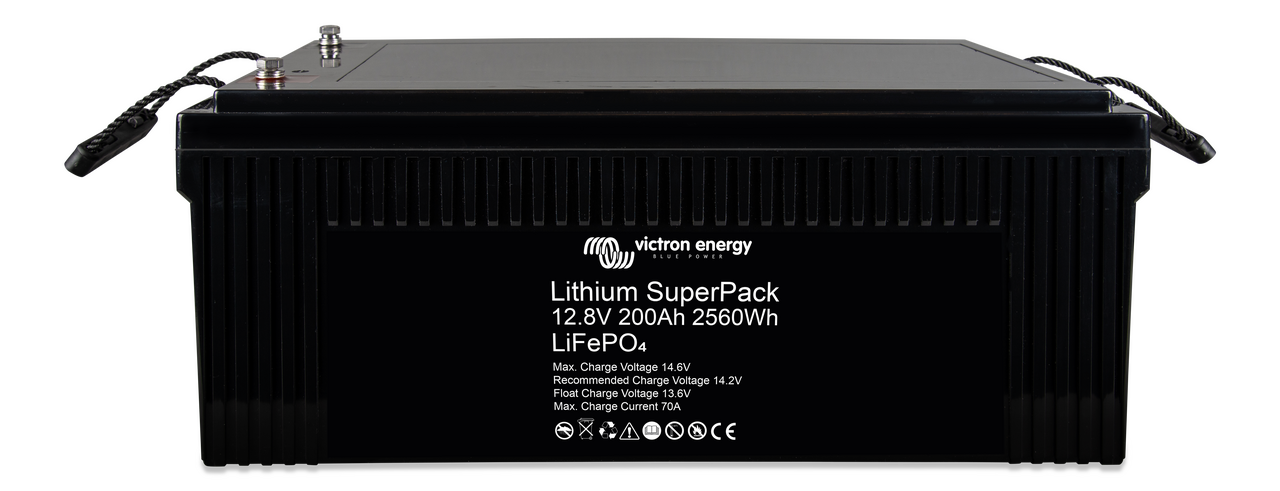

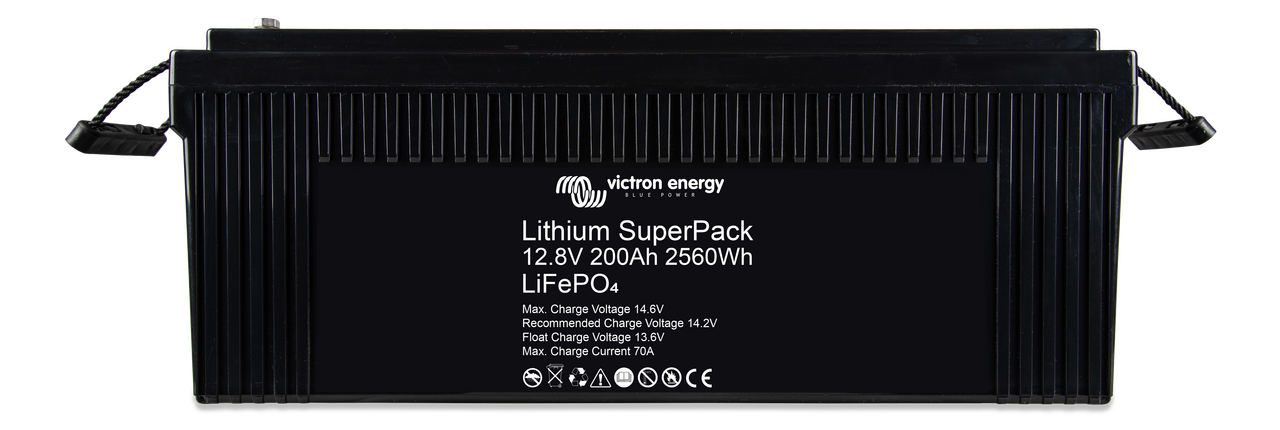

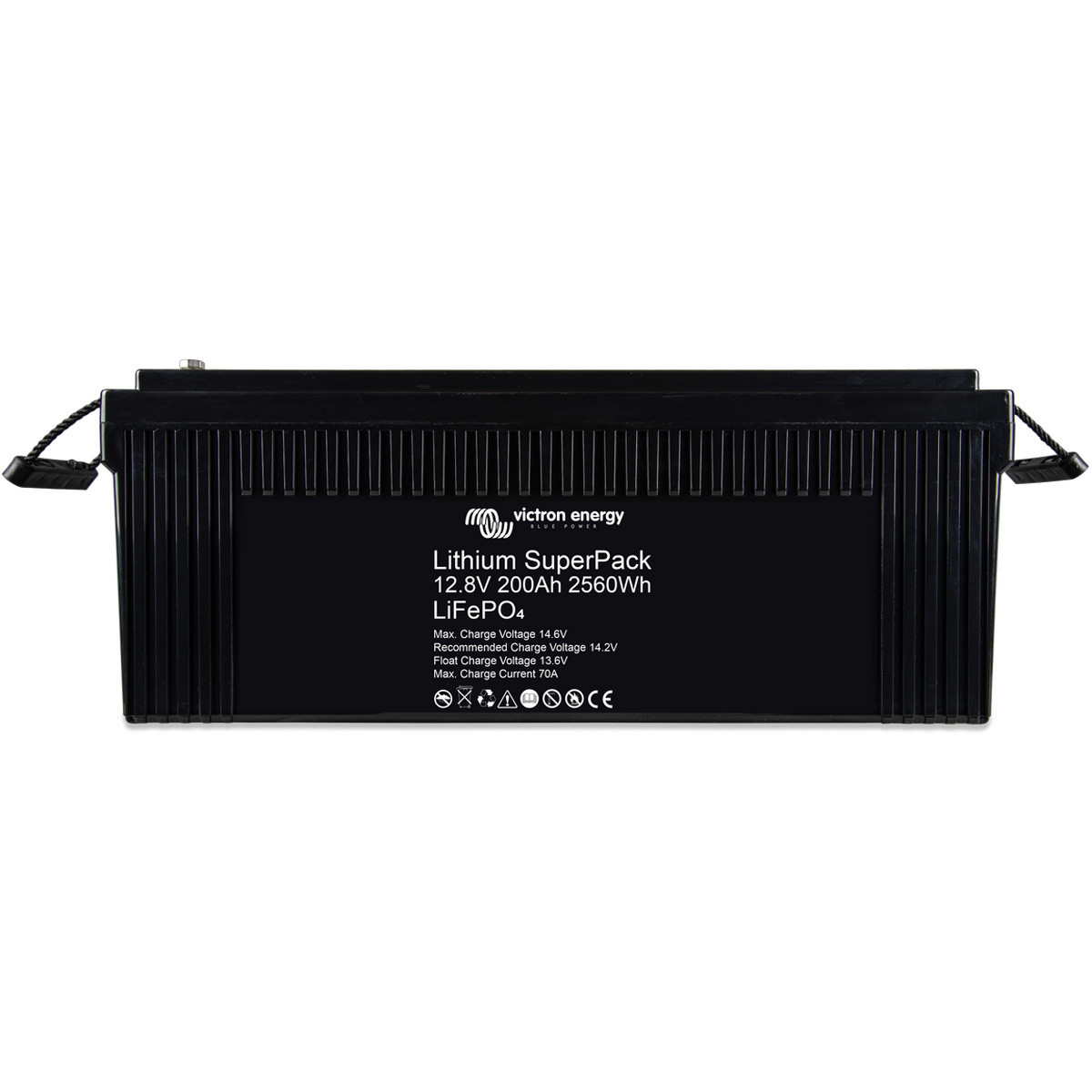

Victron Energy SuperPack Lithium 200Ah 12V Leisure Battery

Campervan, Caravan & Motorhome Off-Grid Power

The Victron Lithium SuperPack Leisure Battery is now available as a 200Ah model. Unleash off-grid freedom in your campervan, caravan or motorhome with this ideal leisure battery for all your outdoor adventures. Able to power you boat, campervan, motorhome or caravan to allow you to travel anywhere giving you ultimate freedom.

Built-in Safety & Easy Installation

With a built-in Battery Management System (BMS) and safety switch, with features to automatically disconnect the battery in case of over-charge, over-discharge, overheating and low temperatures to protect your battery and equipment. No additional components are needed are needed to setup, so installation couldn't be easier. The Victron SuperPack Battery connects easily in parallel configurations, perfect for increasing total amp-hours, but must not be connected in series.

Abuse Proof

Traditional lead-acid batteries can fail prematurely when used improperly, especially when left partially charged or frequently discharged without being fully charged. This can cause sulfation, a battery-killing issue that can drastically shorten its lifespan.

Lithium batteries however, are abuse-resistant. They're designed to handle irregular charging, operate efficiently in partial state of charge, and can be deeply discharged without long-term damage. This makes them ideal for off-grid setups, campervan energy systems, and remote application where full recharges aren't always possible. SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.

Efficient

Energy efficiency is crucial, especially in off-grid systems. The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%. The round-trip energy efficiency of a Li-ion battery is 92%. The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of change has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state). In contrast, Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.

Technical Specifications:

Chemistry:

LiFePO4

Nominal Voltage:

12.8V

Nominal Capacity @ 25øC:

200Ah

Nominal Capacity @ 0øC:

160Ah

Nominal Energy @ 25øC:

2560Wh

Cycle Life @ 80% DoD and 25øC:

2500 cycles

Operating Temperature:

Discharge: -20øC to +50øC, Charge: +0øC to +45øC

Protection Class:

IP 43

Power Connection (threaded inserts):

M8

Dimensions (H) mm:

208

Dimensions (W) mm:

520

Dimensions (D) mm:

269

Weight:

21kg
