Victron Energy

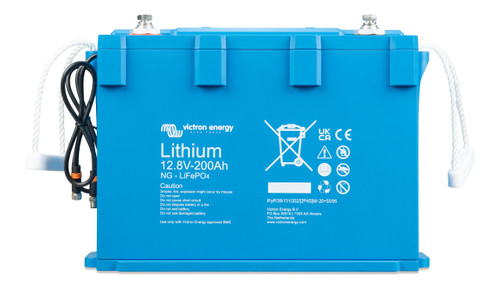

Victron Energy LiFePO4 200Ah Next Gen Lithium Leisure Battery
- SKU:
- BAT512120620
- Availability:
- In stock & sent on a next working day carrier!
- Shipping (T&Cs Apply):
Victron Energy LiFePO4 200Ah Next Gen Lithium Leisure Battery
Ultimate Power for Campervan, Caravan, Motorhome, Boat, and Large-Scale Off-Grid Systems
The Victron Energy LiFePO4 200Ah Next Gen Lithium Leisure Battery provides ultimate power for large 12V DC electrical systems in campervans, caravans, motorhomes, boats, and large off-grid systems. With 200Ah of capacity and advanced LiFePO4 chemistry, this battery is ideal for high-power applications, extended off-grid trips, and systems with higher energy demands.
The 200Ah Next Gen offers up to 2500 cycles at 80% depth of discharge (DoD), ensuring long-lasting and reliable power. Featuring a 12.8V nominal voltage, it delivers consistent energy to your 12V DC system. The Bluetooth-enabled smart monitoring allows you to track voltage, current, and power in real-time via the Victron app.
Backed by a 5-year warranty, the 200Ah Next Gen provides exceptional off-grid energy storage for campervans, caravans, motorhomes, boats, and large-scale off-grid systems.
Victron Built-in Battery Monitoring
The Victron Energy LiFePO4 200Ah Next Gen battery features integrated cell balancing, internal monitoring of voltage and charge state, and overcharge and over-discharge protection for safe, reliable operation. These built-in protections make it an excellent standalone option for larger 12V DC systems.
For systems with inverters or those requiring more precise control, adding an additional BMS unlocks advanced features like real-time monitoring, detailed performance data, and enhanced protection, ensuring efficient energy management for demanding off-grid applications.
Technical Specifications:
- Chemistry:
- LiFePO4
- Nominal Voltage:
- 12.8V
- Nominal Capacity @ 25øC:
- 200Ah
- Nominal Energy @ 25øC:
- 2560Wh
- Cycle Life @ 80% DoD and 25øC:
- 2500 cycles
- Protection Class:
- IP 22
- Power Connection (threaded inserts):
- M8
- Dimensions (H) mm:
- 235
- Dimensions (W) mm:
- 341
- Dimensions (D) mm:
- 160
- Weight:
- 19kg
