Adventurer
Adventurer (THC) Curved Frame Top Hung Hinged Low Profile Campervan Window - White Blind
- Shipping (T&Cs Apply):

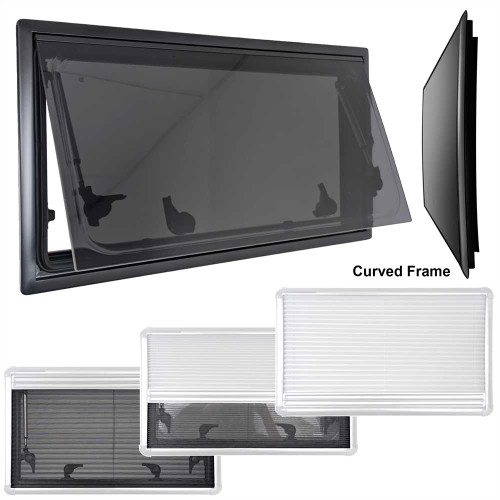

Adventurer (THC) Curved Radius Frame Top Hinged Campervan Windows - White Blind
Black Aluminium Curved Frame Low Profile Campervan Window White Blinds
The Adventurer THC Window comes with a black aluminium frame and white blinds. These Adventurer Curved Campervan Top Hung Windows are designed to seamlessly blend with the contours of your van. As many campervans and converted vans feature side walls with a slight curve running to the bottom, the THC matches the curve of your vans walls to fit perfectly.
These windows are practical and stylish. Featuring a sleek aluminium frame with high-quality, tinted double glazed UV resistant acrylic. This ensures both durability, privacy and protection against the suns UV rays. Available in various sizes to cater to your needs and the size of your campervan. The durable aluminium frame and stainless steel strut rods (with the exception of the 818 x 315mm model which comes with plastic struts) are designed for stability and performance, ensuring that your window has reliable a long lifespan. Featuring a tinted double glazed window and pleated blind and flyscreen within a PVC frame, the Adventurer Curved Frame low profile window ensures privacy when needed and helps to keep light out and adjust light levels. The flyscreen also helps to provide airflow yet keep bugs out.
Installation couldn't be easier! With a window mounting frame which follows the curvature of the campervan wall with a thickness of 25-40mm makes for easy installation on most vehicles and a wide range of window sizes in a stylish black colour will compliment most colour schemes well. It is suggested that a timber frame is bonded to the inside of the vehicle to add rigidity to the van's sides. The timber fame can be built up from thinner strips of ply to follow the curve of the campervan's sides.
Adventurer Curved Top Hung Hinged Windows Specifications
- Aluminium alloy flat frame finished in black
- Double glazed acrylic window
- UV resistant
- Vertical Curvature radius of 5000mm
- Double stainless steel struts (with the exception of 818 x315 frame)
- Two handle closures
- Pleated blind and fly screen with PVC frame
- Wall thickness mounting size: 25-40mm frame
- Suitable for caravan motorhome van conversion or campervan
Adventurer Curved Top Hung Hinged Windows Sizes
Cutout Size (mm) | Overall Size (mm) | Blind Overall Size (mm) |
490 x 500 | 517 x 527 | 518 x 528 |
500 x 300 | 527 x 327 | 528 x 328 |
700 x 400 | 727 x 427 | 728 x 428 |
818 x 315 | 845 x 342 | 846 x 343 |
900 x 500 | 927 x 527 | 928 x 528 |
960 x 450 | 987 x 477 | 988 x 478 |
985 x 465 | 1012 x 492 | 1013 x 493 |
1000 x 500 | 1027 x 527 | 1028 x 528 |
Technical Specifications:
- fbt-product:
- /caravan-motorhome/sikaflex-221-caravan-boat-sealant-adhesive-300ml/
- Frame Colour:
- Black
- Blind Colour:
- White
-
Adventurer THC Windows
Fitted a pair of these to the rear doors of a 2022 Vauxhall Movano. Look great, quality product with easy installation.
