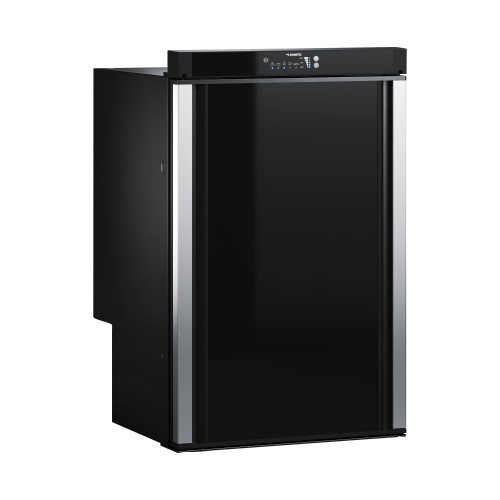

Dometic RMS 10.5XP Extra Deep Cabinet Fridge

High-capacity absorption fridge for campervan and motorhome

The Dometic RMS 10.5XP absorption fridge replaces the RMS 10.5XP refrigerator. Providing a deep profile for increased storage volume, making it perfect for touring use. The RMS 10.5XP fridge comes with 98 litres of volume and internal LED lighting.

Double hinged absorption fridge freezer

Featuring innovative door hinges, which allow your fridge door to open on both the left or the right, for flexible installation. With a removable freezer compartment and twin crisper trays to organise your food easily, ensuring long lasting freshness. And as an RMS model, this fridge has a reduced lower profile, allowing it to fit snugly over the wheel arch of your campervan, motorhome or caravan. The perfect retrofit kitchen upgrade when you only have limited space.

Sleek design, 3-way power & easy control

The Dometic RMS10.5XP is a 3-way fridge - this means it can be powered on gas (propane or butane), 12v (typical car or leisure battery voltage) or 230v (mains hookup). What's more, it can automatically switch between these power sources, letting you focus on enjoying your holiday. Despite the technology behind this fridge, its isn't complicated to use. A simple TFT colour display panel lets you monitor the power source in use, and the twist/push control knob makes it easy to tune your fridge's cooling performance. Dometic have also included their latest Smart CI-BUS technology with this fridge, which lets it communicate seamlessly with the latest campervan and caravan control panels.

Dometic Absorption Fridge Key Features:

• Dual-hinge doors which can open on both sides
• Aluminium door handles
• 3-way power (12v, 230v & gas (propane or butane))
• Automatic power switching
• Colour TFT display panel to monitor power type in use
• Utilises ultra-quiet absorption refrigeration technology
• Removable freezer compartment
• Internal LED lighting

User Manual

Installation Manual

The Dometic RMS 10.5XP absorption fridge is a great replacement for the following Dometic & Thetford fridge models:

• Dometic: RM 855X / RMS 855X
• Thetford: N3111A / N3112E / N4018A / N4108E+ / N4112A / N1121P / N1122E / N1126E / N1126A / N3108E / N3108A / N971P / N972E / N976E / N976A

Please note - the measurements of the RMS 10.5XP 3 way fridge may not be exactly the same as your old fridge - please check measurements carefully!

Fridge replacement guide:

Technical Specifications:

Model:

RMS 10.5 XP

Wheelarch:

Yes

Refrigeration technology:

Absorption

Dimensions H (mm):

821

Dimensions W (mm):

525

Dimensions D (mm):

603

Power Source:

12V/230V/LPG

Max input 12V:

130W

Max input 230V:

135W

Gas Pressure (mbar):

30

Energy consumption:

3.2kWh/24h

Energy consumption gas:

270 g/24h

Total volume:

90L

Frozen Volume Total:

12.1L

Climate class (EN62552):

SN

Weight (kg):

29Kg

SKU:

9620018561
