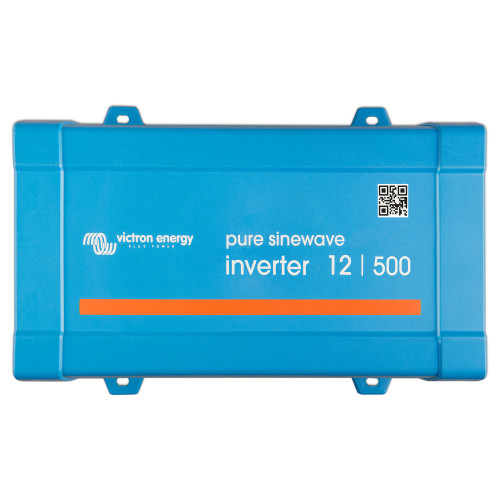

Victron BluePower Phoenix Pure Sine Wave Inverter 12V / 500VA / 400W VE.Direct

Allows you to power domestic equipment using leisure or automotive batteries.

The Victron Energy 500VA Phoenix Inverter is designed for off-grid touring and vanlife applications, delivering reliable pure sine wave power for everyday appliances and electronics. The inverter is short circuit proof and provides protection against overheating, even in high ambient temperatures or overload conditions, whilst having a full bridge plus toroidal transformer.

Economic Functionality

Featuring a built-in ECO mode that helps to conserve battery power while off-grid, the inverter will automatically switch to standby mode if the load decreases and gets lower than the pre-set threshold. As soon as demand increases, the inverter powers back up automatically.

One of its main features is its ability to provide high start-up power output, easily powering up loads including coffee machines and air fryers.

Remote Monitoring

The Victron Energy Phoenix Inverter features a VE.Direct port that allows communication via VE Dongle to external devices, allowing it to be controlled or checked on with a smartphone, tablet or laptop. All setting of the Phoenix Inverter can be configured with the VictronConnect app.

Key Features:

• Pure sine wave output
• Extra start-up power
• LED fault diagnosis
• Fully configurable system, can be linked to multiple devices
• Remote On/Off switching
• DC connection with screw terminals
• VE.Direct Bluetooth Smart Dongle compatible
• Battery voltage protection
• Power overload protection
• Thermal overload protection

Downloads:

• Datasheet

Technical Specifications:

Input Voltage Rating:

9.2 - 17.0VDC

Output Voltage:

230VAC +/- 3%

Continuous AC Power at 25°C:

500VA

Continuous Power at 25°C/40°C:

400/350W

Peak Power:

900W

Max. Efficiency:

90%

No-Load Power Consumption:

6W

Default Zero Load Power in ECO Mode:

1W

Operating Temperature:

-40°C to +65°C (fan assisted cooling)

DC Low Shut Down:

9.3V (Adjustable)

Dynamic (Load Dependent) DC Low Shut Down:

Fully Configurable

DC Low Restart and Alarm:

10.9VDC (Adjustable)

Battery Charged Detect:

14.0V (Adjustable)

Cable Connection:

Screw Clamp Terminals (Cable Size 10mm² max)

Output Socket:

BS1363 UK 3-pin Socket

Remote On/Off Connection:

2 Pole Connector

Ingress Protection Rating:

IP21

Body Material:

Steel with Plastic Cover (Blue Ral 5012)

Mounting Holes:

x4 on sides of chassis

Weight:

3.9kg

Overall Dimensions:

H 86mm x W 172mm x D 275mm

SKU:

PIN121501400
