Navy Load Campervan Kitchen Universal Kit

Sink and Hob Installation Kit for Campervan, Caravan, Motorhome and Boat

The new Navy Load Campervan Kitchen Uni Kit 2510 is available with both a left hand and right hand sink. Featuring double burners and a folding micro-switched tap, this kitchen kit is just what you need for your motorhome conversion! An ideal sink and hob combination, this universal conversion kit comes with both LPG gas hose and an 8mm copper pipe. Allowing you to select your own regulator depending on the installation.

We've chosen a selection of parts and fittings to get you on the road as quickly as possibly. All of the components in this kit are quality parts which we've been selling to converters for many years - and are the right size to work with each other. This includes a Whale water pump, a waste and fresh water tank and pipes, a gas vent, p-clips, jubilee clips, gas pipe and fittings, electrical cable and connectors.

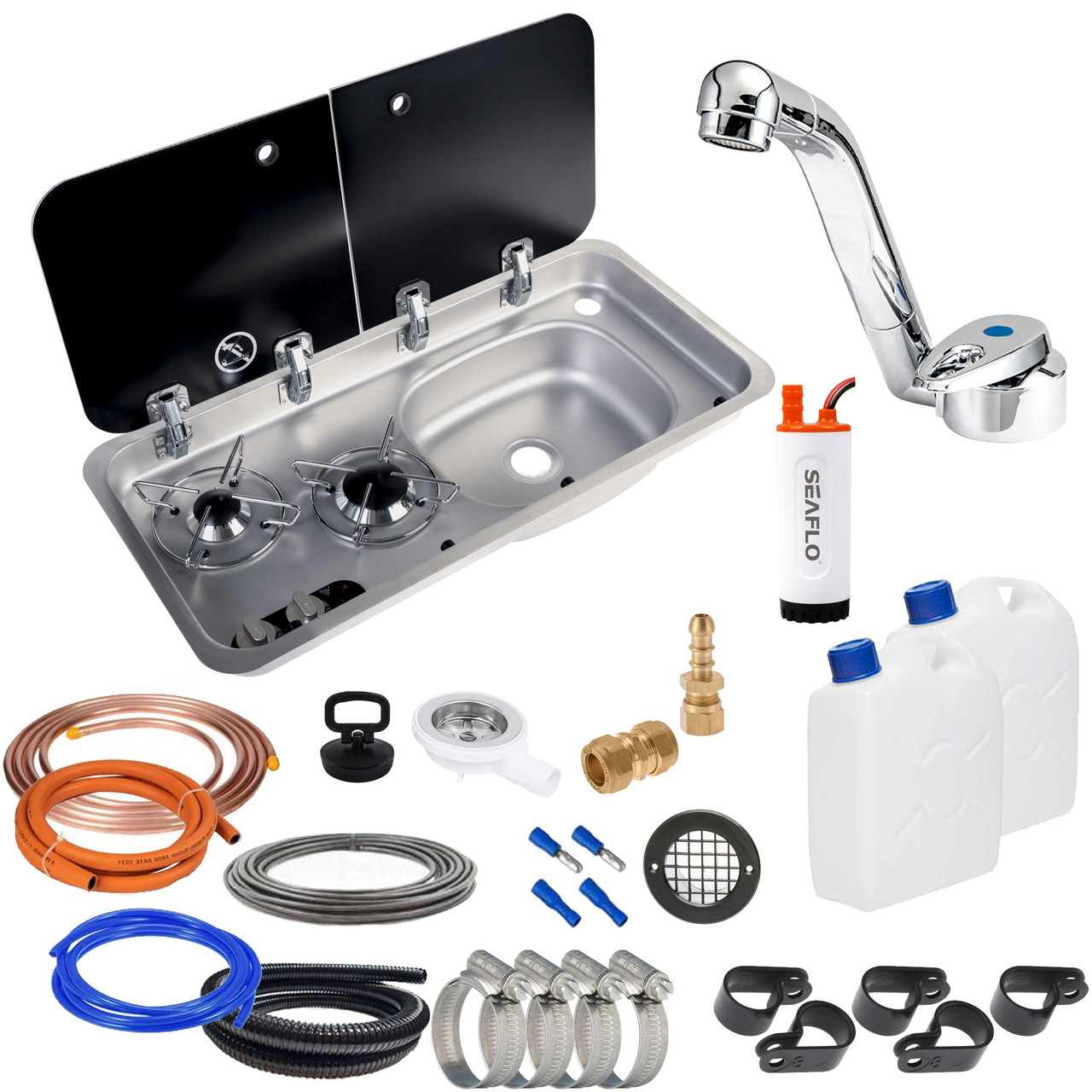

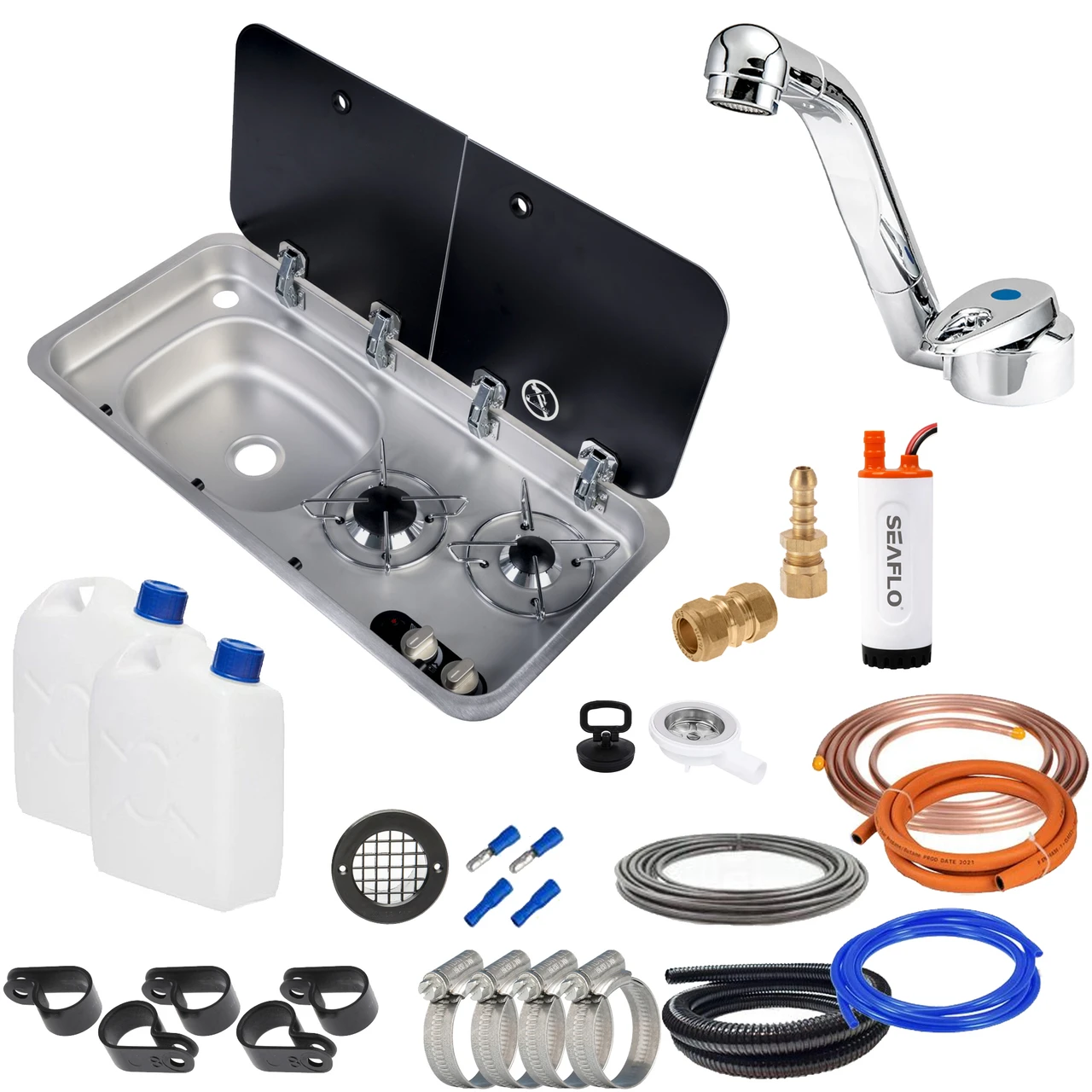

Included in our Universal Conversion Kit:

• Navy Load Hob & Sink Unit
• Folding Micro-Switched Cold Tap
• Whale Submersible Pump
• 2 x 10L Jerry Cans (Dimensions - L 28cm x W 13cm x H 34cm)
• 2mtr x 10mm Cold Pipe
• 2mtr x 20mm Waste Pipe
• 75mm Floor Vent
• Pack of 8 x P-Clips
• 4 x Jubilee Clips
• 3 Metre 12V Twin Core Cable
• 1 x 8mm Straight Compression Coupling
• 1 x 8mm Compression Nozzle
• 1mtr LPG Gas Hose
• 2mtr x 8mm Copper Pipe
• Cable Connectors
• Template will be drawn on the box for you

Navy Load 2 Burner Hob with Sink Key Features:

• Piezo Ignition: Pre-fitted piezo ignition system for 12V power supply compatibility
• Safety Ignition System: Flame failure device is included for peach of mind that the gas will shut off if the flame is extinguished unexpectedly
• Left and Right Sink Options: Choice of left or right sink for customizability
• Built-in Safety: Heat resistant safety glass lids
• Fully Compatible: Ideal for caravan, campervan, motorhome, off-road van and boat conversions

Technical Specifications:

Burners:

2

Power:

1 x SR / 1 x A 2.8 kw

Power Supply:

GPL 28-30 MBAR

Consumption:

204 G/H

Safety Device:

Thermocouple

Ignition:

PIEZO

Material:

Stainless Steel 304

Installation Hole:

Water Tap: Ø 33.5mm

Finish:

Matte

Product Size:

L 726cm x W 346cm x H 145cm

Built-in Size:

700cm x 315cm

Weight:

8kg

Plate:

CE
