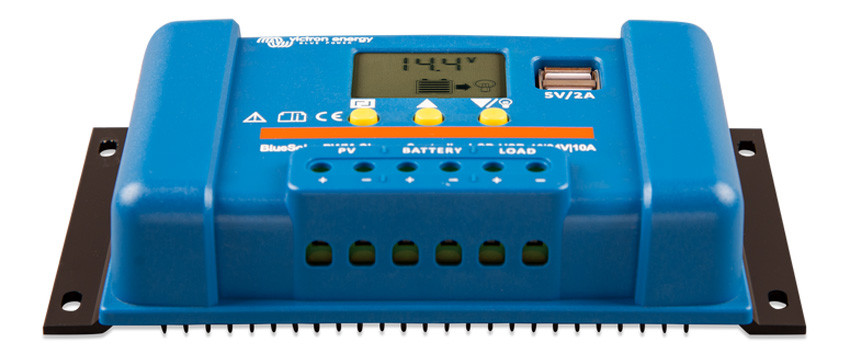

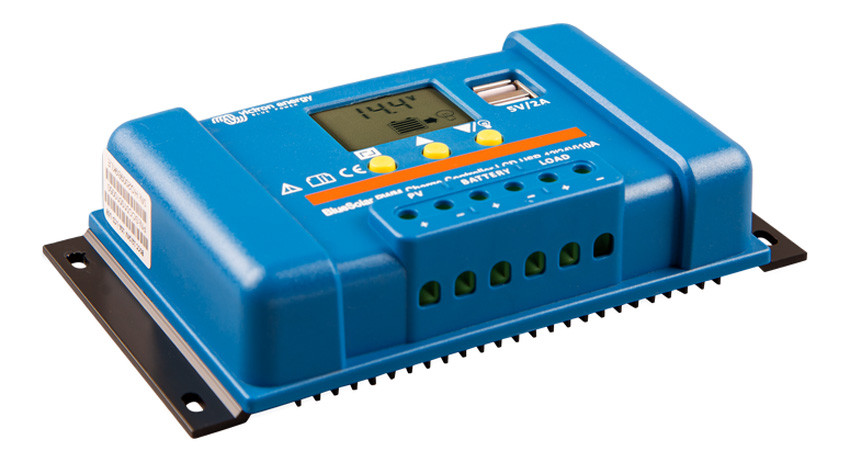

Victron Energy BlueSolar PWM Charge Controller LCD Display & USB 12/ 24v - 10A

Powerful and User-Friendly Solar Charging for Your Campervan, Caravan, Motorhome, or Boat

Monitor Your Solar System with Ease

The Victron Energy BlueSolar PWM-LCD&USB Charge Controller offers a powerful and easy-to-use solution for managing your solar power system in your campervan, caravan, motorhome, or boat.  The new, ultra-low-power LCD display provides clear and convenient monitoring of your battery's charge levels and overall system status.

The PWM controller manages the flow of electricity from your solar panels to your batteries. It ensures the batteries receive the correct voltage to charge efficiently and prevents them from being overcharged, which can damage them.

Optimized Charging and Control

The BlueSolar PWM utilizes a three-stage charging process (bulk, absorption, and float) to maximize the efficiency of charging different battery types.  These stages are fully programmable, allowing you to customize the charging profile for your specific setup.  The controller also features a programmable lighting control function,  providing additional control over your off-grid power.

Built-in Protections and Flexibility

The BlueSolar PWM prioritizes system safety with a programmable load output that disconnects non-critical loads when battery voltage drops to a preset level.  This  low voltage disconnect  protects your batteries from over-discharge.  The load output is further protected against overload, short circuit, and reverse polarity connection of the solar panels or battery.

For added convenience, the BlueSolar PWM features two built-in 5V USB outputs,  ideal for charging smartphones and other small devices.

Key Features at a Glance

• Low-Power LCD Display: Monitor and program your system settings with ease.
• Lighting Control Function: Programmable lighting control for convenient automation.
• Three-Stage Programmable Charging: Optimize charging for different battery types (AGM, GEL, Flooded, LiFePO4)
• Dual 5V USB Outputs: Charge your mobile devices directly from the controller.
• Programmable Load Disconnect: Protects batteries from over-discharge.
• Comprehensive Protections: Safeguards against overload, short circuit, and reverse polarity.

Ideal for Off-Grid Adventures

The Victron Energy BlueSolar PWM-LCD&USB Charge Controller is a reliable and user-friendly solution for managing your solar power system in campervans, caravans, motorhomes, and boats.  Its combination of powerful charging, easy monitoring, and built-in protections makes it a perfect choice for maximizing your solar energy and enjoying a smooth off-grid experience.

Technical Specifications:

Battery Voltage:

12/24 V with automatic system voltage detection

Rated Charge Current:

10 amp

Automatic Load Disconnect:

yes

Protection Battery:

reverse polarity (fuse), output short circuit, over temperature

Low Voltage Load Disconnect:

11.2V / 22.4V

Low Voltage Load Reconnect:

12.6V / 25.2V (manual), 13.1V / 26.2V (automatic)

Protection Class:

IP20

Terminal Size:

6 mm² (AWG10)

Weight:

0.15 kg

Dimensions H (mm):

96

Dimensions W (mm):

169

Dimensions D (mm):

36

Display:

LCD
