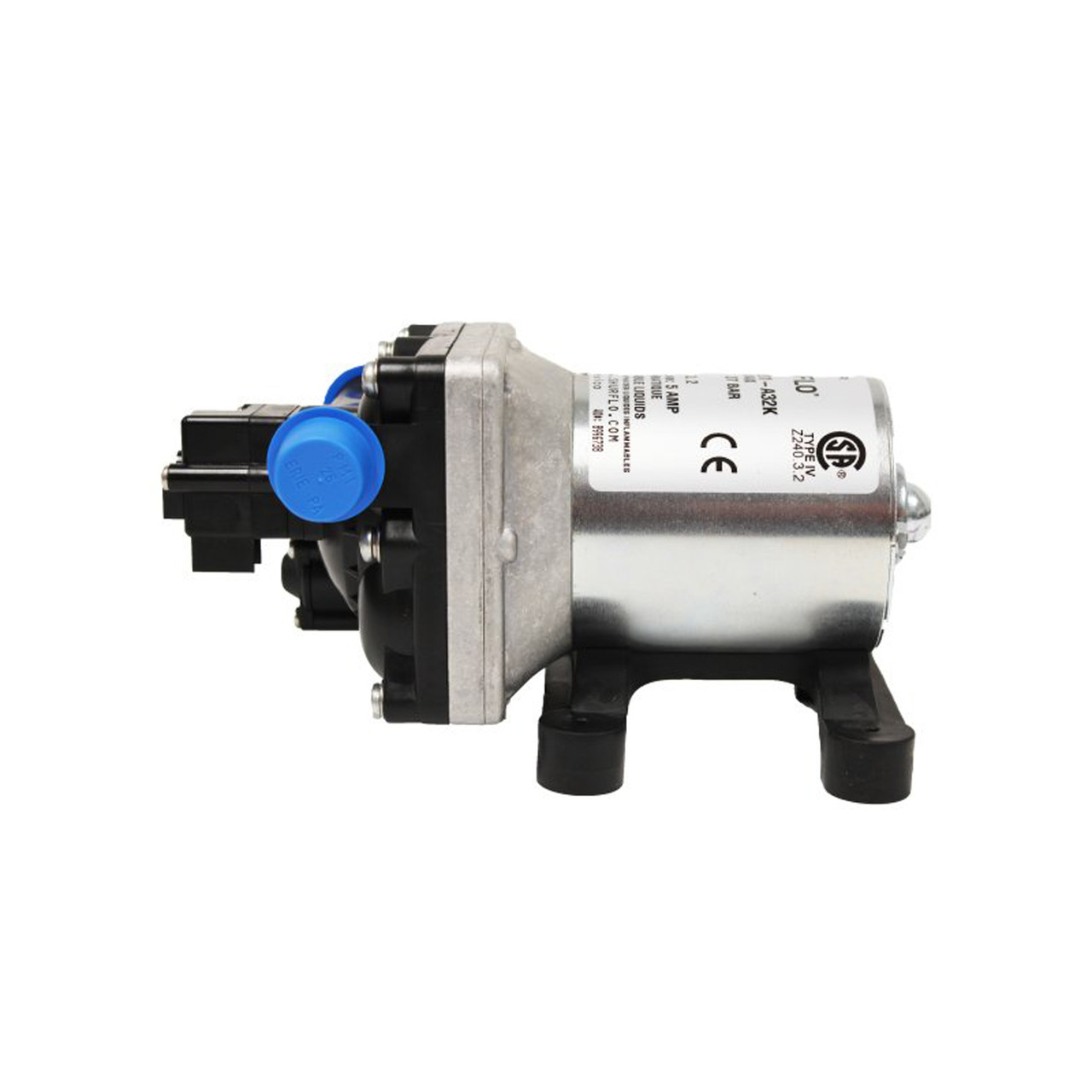

Shurflo RV Water Pump

Pressurised Water Pump for Motorhome and Caravan

Shurflo RV Pump is designed for caravan, motorhome and campervan owners who require reliable water pressure at campsites. The next generation of water pumps, made to deliver high flow pressure on demand, dampened vibration noise, reduced pulsing and the elimination of rapid cycling. Giving you a smooth, quieter and more reliable water system wherever you travel.

With next generation performance with four independent pump champers for an ultra-smooth, even flow. The perfect upgrade or replacement for old pumps and pumps that don't perform to a high standard. Easy installation, fits the same installation space as 2095 series pumps. The RV 12V 7.6L 30PSI model (4029-281-B32K) features an Elasformer Base Plate, meaning it will not directly fit the same base footprint as the 2095 series and 40x9 series with metal base, due to different screw hole centres (73x83mm) instead of (57x81mm).

Supplied with optional fittings including 2 x John Guest fittings or 1 x angled hose connector and 1 x straight hose connector, to fit a 12mm diameter flexible hose. Please Note: For flexi hose connectors you will need to order the length of 12mm water pipe separately. Alternatively, John Guest fittings are only compatible with John Guest pipe and are not suitable for 12mm flexible hose.

All Shurflo Trail King Pumps are water tested by Shurlfo in their factory prior to shipping. Some residual water may be present during installation. This is not a fault or sign of previous use.

High Pressure Pump Key Features:

• Adjustable pressure shut-off micro switch for tailored system control
• Thermal overload protection
• Built-in check valve to prevent back-flow
• 12V/24V 3" diameter motor
• Dampened noise, quieter operation
• Reduced cycling with Flow Reaction technology
• Internal bypass - low cycling
• Run-dry safe design for added reliability
• Self-priming to 6 vertical feet
• 4 independent pump champers for smooth even flow
• Built for power, built to last
• Fits the same installation space as 2095 Trail King series pumps
• Elasformer base plate (RV 12V 7.6L 30PSI model only)

Downloads:

• Instructions
• Datasheet
• Datasheet (Rubber Base Model)

Technical Specifications:

Prime:

2.7M (9’)

Run Dry:

Yes

Weight:

1.8kg
