Truma Combi D6E Diesel Caravan Air and Water Heater Kit

No reviews yet Write a Review
£1,850.00 (Inc. VAT )
£1,541.67 (Ex. VAT )
SKU:
TrumaD6-Black
Availability:
The Truma Combi D6E water and air heater is in stock and available on next working day delivery
Shipping (T&Cs Apply):
Shipping & Returns Policy Details

Truma Combi D6E Diesel Water and Air Space Heater

Truma Combi Diesel Kit for your Motorhome Campervan Caravan

The Truma Combi D6E Diesel air space and water heater kit includes all the parts you need to install and operate the unit itself. Featuring all the benefits of the standard Truma Combi range but with a diesel heater instead of gas alongside an electric element, the Combi D6E is not only effective but also provides increased availability of fuel more suited to those traveling further afield.

Lightweight and compact

Although the Combi D6E is able to operate as both a hot water boiler and space heater, it is relatively small and lightweight. With an inbuilt 10 litre hot water storage tank, the Truma D6E is able to provide enough hot water for everyday tasks as well as heating your living space.

Flexibility to suit your needs

The Combi D6E has 4x heated air outlets allowing for effective heating of your living space. With its digital Truma I-net control panel the Combi D6E also allows you control over function at any moment, giving you easily adjustable options between hot air, hot water or even having both at once.

230V mains electric heater

The Combi D6E is able to operate on 230V mains in addition to the diesel heater. This not only allows you to heat water and living space air using diesel, but alternatively you can use the electric element when hook-up is available or diesel is unavailable, and you can even use both diesel and electric together for increased performance and efficiency.

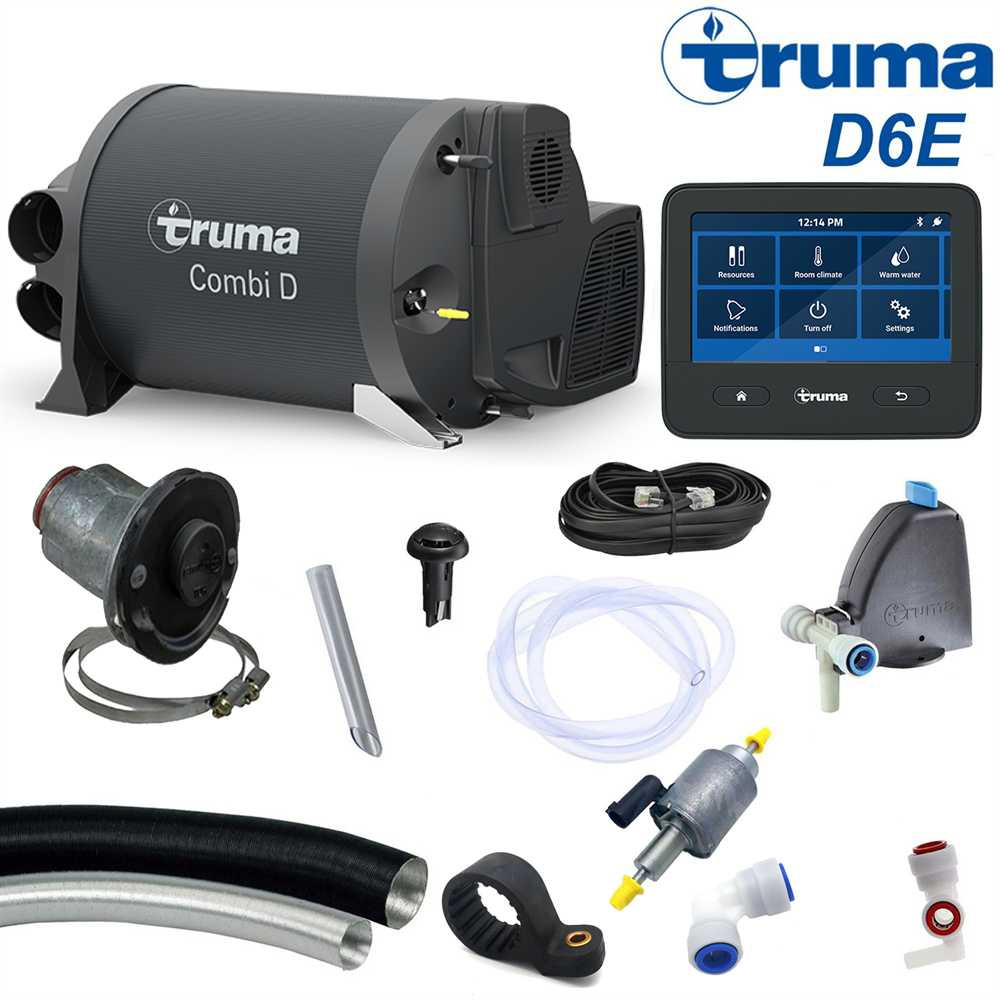

The Truma Combi D6E kit includes:

  • Truma Combi D6E diesel and electric heater unit
  • Truma I-net digital control panel
  • John Guest water kit
  • 6 metres control panel cable
  • Truma Combi diesel exhaust/flue and air inlet kit
  • Truma universal fuel take off kit (works with most vehicle standard fuel senders)
  • Japan Solderless Terminal electrical ends
  • Truma installation and operation instructions

New installations will require warm air distribution ducting. Please note that the Truma Room Temperature Sensor Cable is not included in the kit.

Truma iNet control panel

The Combi D6E kit from Truma includes the innovative I-Net digital control panel. In addition, if you have a Truma air conditioning unit, the control panel can automatically co-ordinate the heater and air conditioning to ensure your living space maintains a comfortable environment (please note a TIN distributor is required to connect 2 appliances to the iNet X control panel)

Please note that ducting is NOT included with the Truma Combi D6E but can be purchased here


D6E Heater Technical Specifications


Combi D6E
  Dimensions (L x W x H)
525 x 450 x 300 mm
  Installation dimensions (L x W x H)
540 x 500 x 350mm*
  Unit Weight (without water)
16.9kg
  Heating time (from 15°C to 60°C) (Water only)
Approx. 20min.
  Heating time (from 15°C to 60°C) (Heater + Water)
Approx. 80min.
  Rated thermal output in Watts (Diesel)
Upto 6000
  Rated thermal output in Watts (Electric)
1800
  Rated thermal output in Watts (Diesel & Electric Comb.)
5800
  Fuel consumption
220 - 630ml/h
  Water capacity
10 litres
  Air flow rate
287 m3/h
  Power consumption (at 230V)
3.9A / 7.8A
  Power consumption (at 12V)
Heating up boiler 1.8A up to temp max. of 4.0A
  Water pressure
Max. 2.8 Bar

*Please be aware that in addition to the installation dimensions, some additional space must be provided as appropriate for the diesel and water connections as well as the drain valve.

Read the Truma Combi D6 Diesel Caravan Air and Water Heater Installation Manual
Read the Truma Combi D6 Diesel Caravan Air and Water Heater Operating Manual
