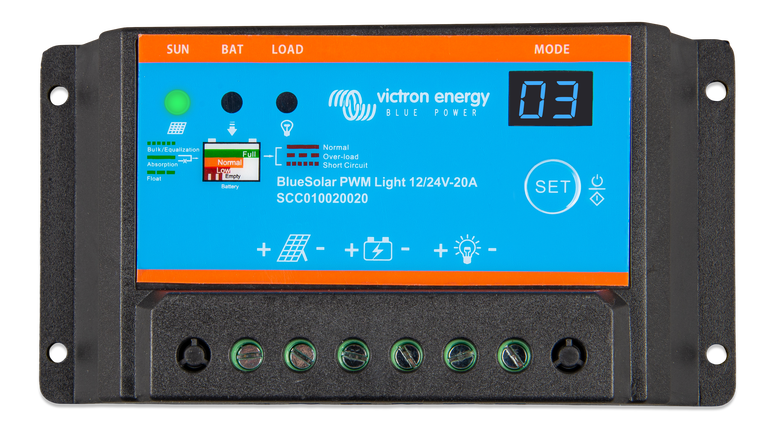

Victron Energy BlueSolar PWM Light 12/24V Charge Controller – 20A

Cost-Effective PWM Charge Controller for Medium Solar Systems

The Victron BlueSolar PWM Light 20A is designed for medium-sized off-grid solar systems in campervans, caravans, motorhomes and boats. It safely manages power from your solar panels to your leisure batteries, helping extend battery life and maintain reliable off-grid power.

This controller offers automatic battery voltage detection, three-stage charging and essential system protections, making it a solid choice for straightforward solar installations.

Key Features

• 12V and 24V system compatibility
• 20 amp PWM solar charge controller
• Automatic bulk, absorption and float charging
• Load output with battery low-voltage protection
• Simple lighting control function
• Comprehensive electronic protection

Technical Specifications:

Battery Voltage:

12/24 V with automatic system voltage detection;Rated Charge Current=20 amp"

Automatic Load Disconnect:

yes

Protection Battery:

reverse polarity (fuse), output short circuit, over temperature

Low Voltage Load Disconnect:

11.2V / 22.4V

Low Voltage Load Reconnect:

12.6V / 25.2V (manual), 13.1V / 26.2V (automatic)

Protection Class:

IP20

Terminal Size:

5 mm² (AWG10)

Weight:

0.15 kg

Dimensions H (mm):

70

Dimensions W (mm):

133

Dimensions D (mm):

33.5
