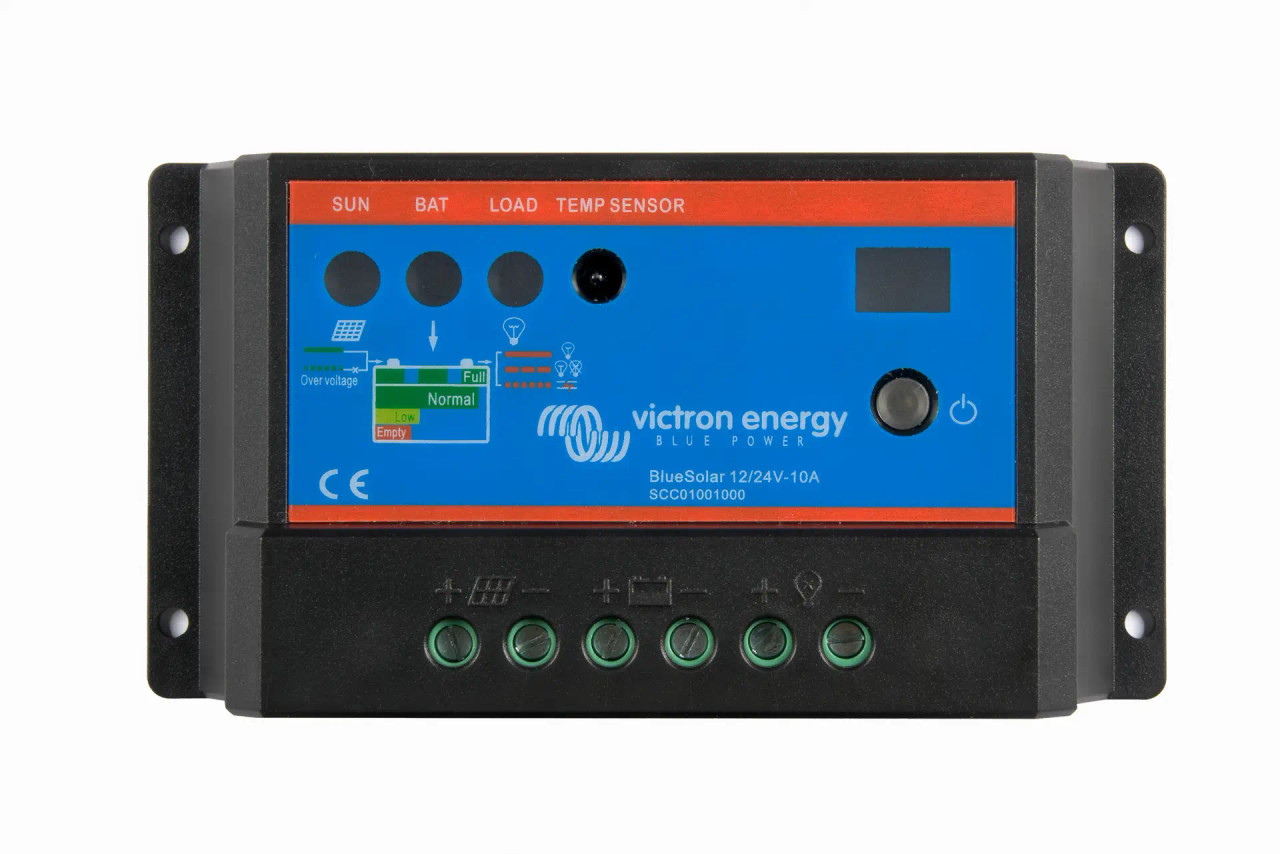

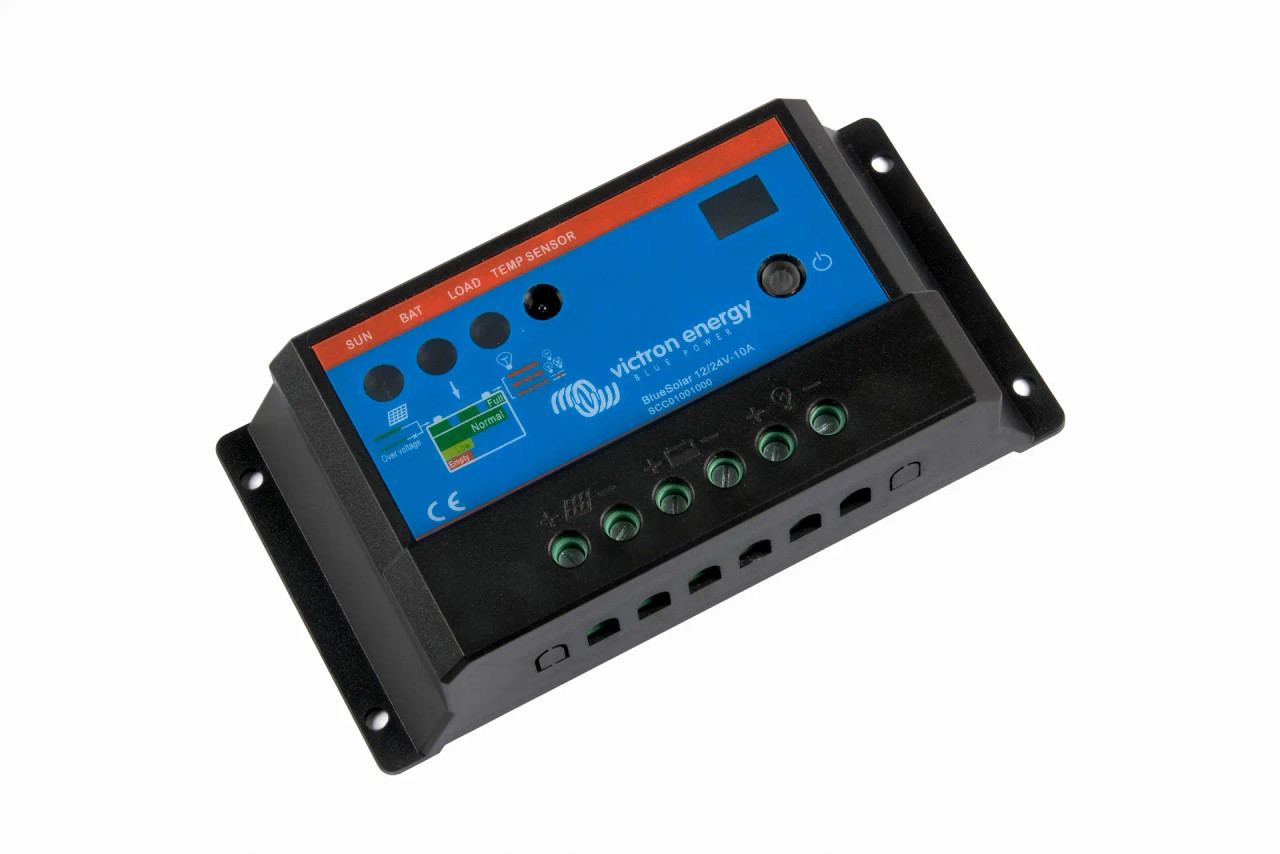

Victron Energy BlueSolar PWM Light 12/24V Charge Controller – 10A

Reliable PWM Solar Charging for Small to Medium Solar Setups

The Victron BlueSolar PWM Light 10A is a dependable and easy-to-use solar charge controller for 12V and 24V off-grid systems. Designed for campervans, caravans, motorhomes and boats, it provides safe and efficient battery charging while protecting your system from common electrical faults.

With automatic voltage detection and built-in battery protection, the PWM Light 10A is well suited to modest solar installations where reliability and simplicity are more important than advanced monitoring.

Key Features

• Supports both 12V and 24V battery systems
• 10 amp PWM charge controller for small to medium solar arrays
• Automatic three-stage PWM charging
• Load output with low-voltage disconnect
• Basic lighting control and timer function
• Overload, short-circuit and reverse polarity protection

Technical Specifications:

Battery Voltage:

12/24 V with automatic system voltage detection;Rated Charge Current=10 amp"

Automatic Load Disconnect:

yes

Protection Battery:

reverse polarity (fuse), output short circuit, over temperature

Low Voltage Load Disconnect:

11.2V / 22.4V

Low Voltage Load Reconnect:

12.6V / 25.2V (manual), 13.1V / 26.2V (automatic)

Protection Class:

IP20

Terminal Size:

5 mm² (AWG10)

Weight:

0.15 kg

Dimensions (H x W x D):

70 x 133 x 33.5 mm
