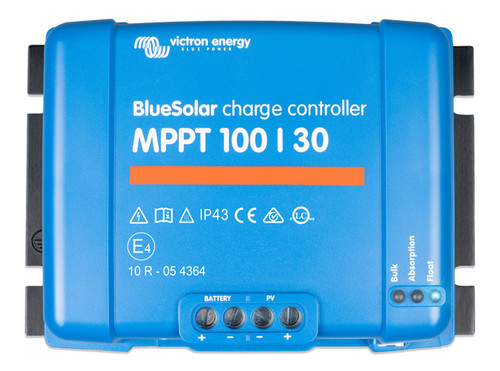

Victron BlueSolar MPPT Leisure Battery Charge Controller 100V 30amps

High Efficiency MPPT Solar Charger for Campervans, Caravans, Motorhomes and Off Grid Systems

Victron BlueSolar MPPT 100/30 is a high efficiency solar charger and charge controller for campervans, caravans, motorhomes and boats. It gets more usable power from your solar panels while safely charging and protecting your leisure batteries. Advanced MPPT technology constantly tracks the best solar output, delivering faster and more efficient charging than standard controllers, even in cloudy or changing weather. Built in battery protection and Victron BatteryLife management prevent deep discharge, extend battery life, and provide reliable off grid power for campervan, caravan and motorhome use, with higher current capacity for larger or more demanding solar setups.

Key Features

• Suitable for 12V, 24V and 48V leisure battery systems in campervans, caravans, motorhomes and boats
• 30 amp MPPT solar charger ideal for larger off grid solar panel systems
• MPPT solar charging improves performance when solar panels are partially shaded
• High efficiency power conversion reduces energy loss and improves overall solar charging results
• Fanless design with natural cooling for silent and reliable off grid operation
• Automatic battery voltage detection for quick and easy installation
• Adjustable charge settings for different battery types including lead acid and lithium
• Built in temperature protection to safeguard the solar charger and battery system

Monitoring and Control Options

• VictronConnect app for setup and monitoring via smartphone using Bluetooth with optional VE.Direct dongle
• Optional MPPT control display for simple on site monitoring of your solar power system
• GX devices with the Victron VRM website for advanced monitoring of larger off grid solar systems

Technical Specifications:

Battery Voltage:

12/24V (auto select)

Rated Charge Current:

30A

Maximum PV open circuit voltage:

100v

Nominal PV Power, 12V:

440W

Nominal PV Power, 24V:

880W

Automatic Load Disconnect:

Yes

Max. Continuous Load Current:

30A

Protection Output:

Short Circuit / Over Temperature

Operating Temperature:

-30 to +60°C (full rated output up to 40°C)

Data Communication Port:

VE.Direct (see the data communication white paper on our website)

Bluetooth Enabled:

No

Power/Terminal size:

16 mm² / AWG10

Protection Category/Class:

IP43 (electronic components), IP22 (connection area)

Dimensions H:

130mm

Dimensions W:

186mm

Dimensions D:

70mm

Safety:

EN/IEC 62109-1, UL 1741, CSA C22.2
