Adventurer (RND) Curved Frame Top Hung Hinged Campervan Window (Rounded Corners)

No reviews yet Write a Review
£199.00 (Inc. VAT )
£165.83 (Ex. VAT )
Shipping (T&Cs Apply):
Shipping & Returns Policy Details

Adventurer (RND) Curved Radius Frame Top Hinged Campervan Windows with Rounded / Curved Edges

Black Aluminium Curved Frame Low Profile Campervan Window

Introducing our new collection of Adventurer Curved Campervan Top Hung Windows, crafted to seamlessly blend with the contours of your van.

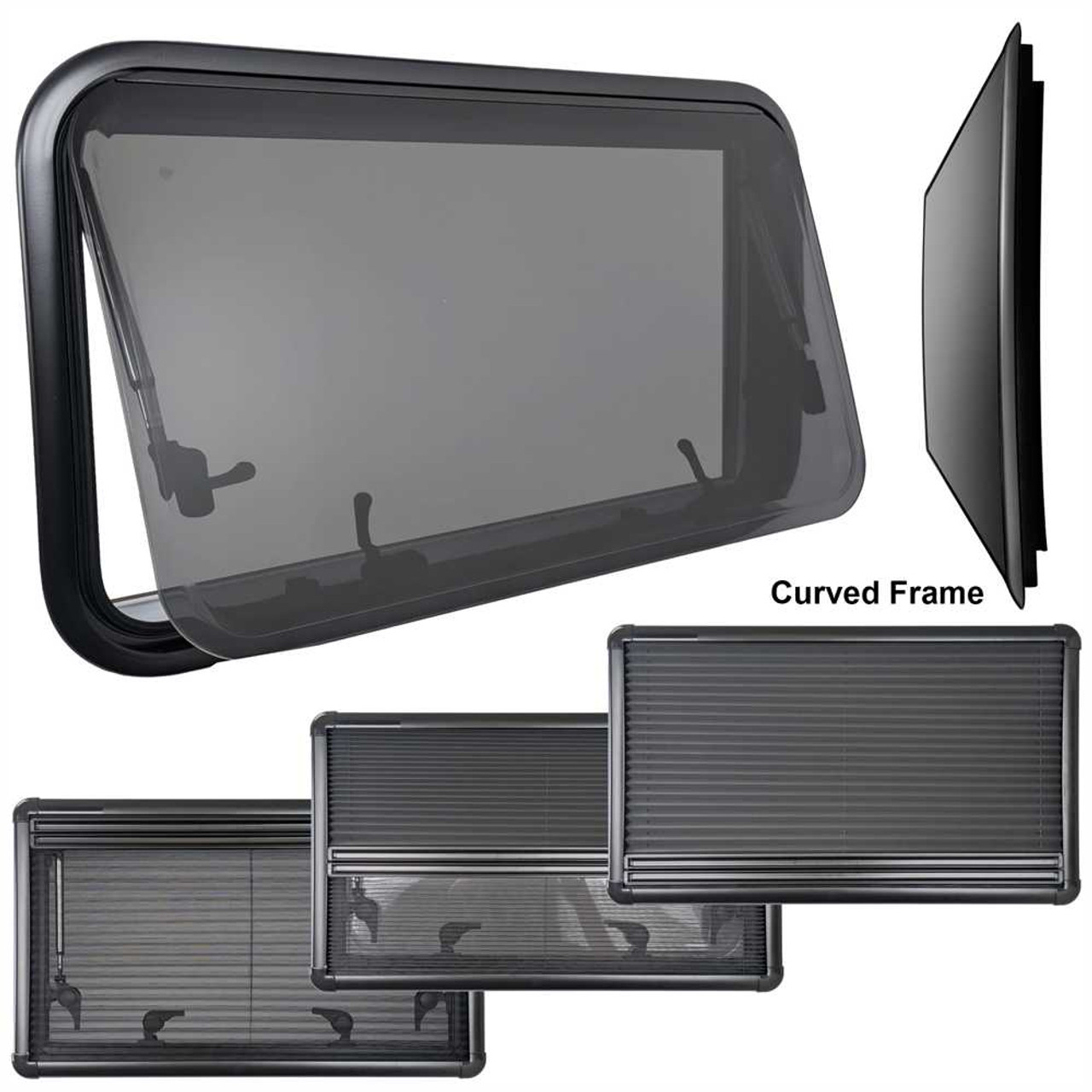

Curved frame explained

Many panel van conversions and campervans have sides which have a slight curve running top to bottom, the Adventurer curved frame window matches the curve of your van's bodyshell.

Practical and Stylish

These windows feature a sleek aluminium frame and are fitted with high-quality, dark tinted double glazed UV resistant acrylic, ensuring both durability and optimal protection against harmful UV rays and privacy. Available in various sizes, our curved campervan windows cater to your needs.  The Adventurer curved campervan windows prioritise stability and durability by incorporating an aluminium frame and stainless steel strut rods (with the exception of the 818 x 315mm version which comes with plastic struts). These enhanced features ensure a robust structure and reliable performance for your campervan adventures.

Privacy is key

With a dark tinted double glazed window and pleated blind and flyscreen within a PVC frame, the Adventurer Curved Frame low profile window adds privacy and helps to keep light out. The flyscreen also helps to provide airflow yet keep bugs out.

Easy installation

A window mounting frame which follows the curvature of your campervan van conversion sides with a maximum wall thickness of 26-50mm makes for easy installation on most vehicles and a wide range of window sizes in a stylish black colour will compliment most colour schemes well. It is suggested that a timber frame is bonded to the inside of the vehicle to add rigidity to the van's sides. The timber fame can be built up from thinner strips of ply to follow the curve of the campervan's sides.

Adventurer Curved Top Hung Hinged Windows Specifications

  • Aluminium alloy flat frame finished in black
  • Thermal insulation
  • Double glazed acrylic window
  • Choose between black or white internal frame and blind
  • UV resistant
  • Curvature radius of 5000mm
  • Adjustable window stays
  • Handle without lock
  • Pleated blind with an Aluminium frame
  • Wall thickness mounting size: 26-50mm frame
  • Suitable for caravan motorhome or campervan



Cutout Size (mm) Overall Size (mm) Blind Overall Size (mm)
280 X 380 307 x 407 307 x 420
700 X 400 727 x 407 727 x 440
750 x 455 777 x 482 777 x 495
818 x 315 845 x 342 845 x 355
900 x 500 927 x 527 927 x 540
960 x 450 987 x 477 987 x 490
985 x 465 1012 x 492 1012 x 505
1000 x 500 1027 x 527 1027 x 540

Technical Specifications:
