Thetford C223CS Caravan & Motorhome Cassette Toilet

4 Customer Reviews Write a Review
£389.00 (Inc. VAT )
£324.17 (Ex. VAT )
SKU:
200868SP
Availability:
Sent on a next working day carrier!
Shipping (T&Cs Apply):
Shipping & Returns Policy Details

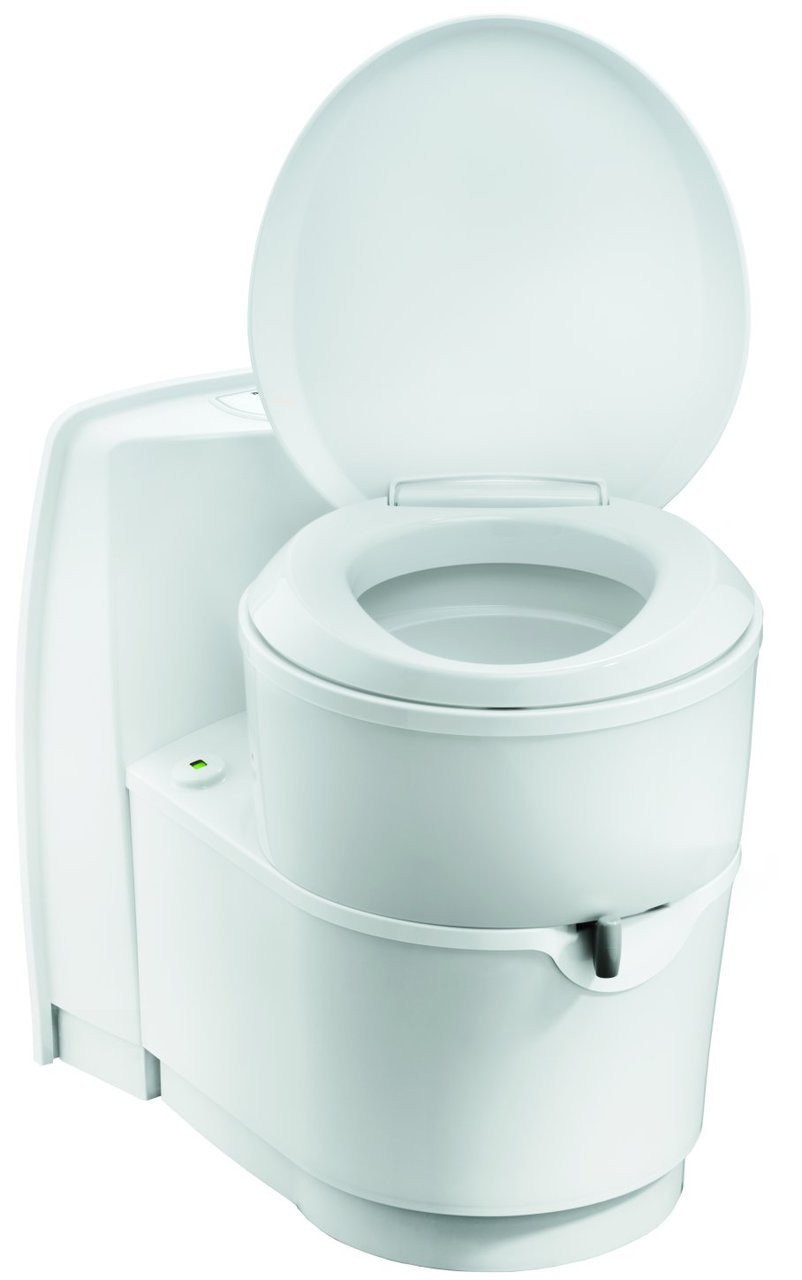

Thetford C223CS Caravan and Motorhome Cassette Toilet

A high quality Cassette Toilet for use in caravan, campervan or motorhome with their own onboard water tank, the Thetford C223CS Cassette Toilet features a waste tank capacity of 18 litres and comes with the convenience of electric flush.

The built-in Cassette Toilet consists of two parts: a permanently installed toilet and a removable waste-holding tank. A useful indicator lets you know when the tank needs to be emptied, and you can access and remove the tank through a small door on the outside of the motorhome, campervan or caravan.

This terrific caravan and motorhome toilet from Thetford is suitable for installation against the external side wall or rear wall of the caravan, motorhome or campervan but can also be easily installed against an interior wall in your vehicle/vessel, provided there is level access on the other side, to enable the waste tank removal.

The Thetford C223CS Cassette Toilet also benefits from a fully adjustable swivel seat / bowl which can be moved through 180 degrees to accommodate for installation and positioning in tight, awkward spaces in your caravan, campervan or motorhome.

Thetford C223CS Caravan and Motorhome Cassette Toilet Features:

  • Highest level of seating comfort on the market
  • Lightweight, high-quality, durable white plastic
  • Quiet yet powerful flushing system with full bowl coverage - 12V Electric
  • 3 year warranty
  • Waste-holding tank indicates when it needs emptying
  • Waste-holding tank on wheels
  • Vent button for emptying without splashing
  • Automatic pressure release vent prevents gas build-up, ensures splash-free tank opening
  • Built-in rotating spout for emptying
  • Waste tank capacity: 18L
  • Flush water tank capacity: Dependent upon vehicle’s central water tank.
  • Dimensions: H534 x W394 x D580mm
  • Rear console with mounted electric flush button
  • **Please Note** This product usually requires the purchase of the Thetford 'Access Door' This provides neat access for removal of the waste tank.

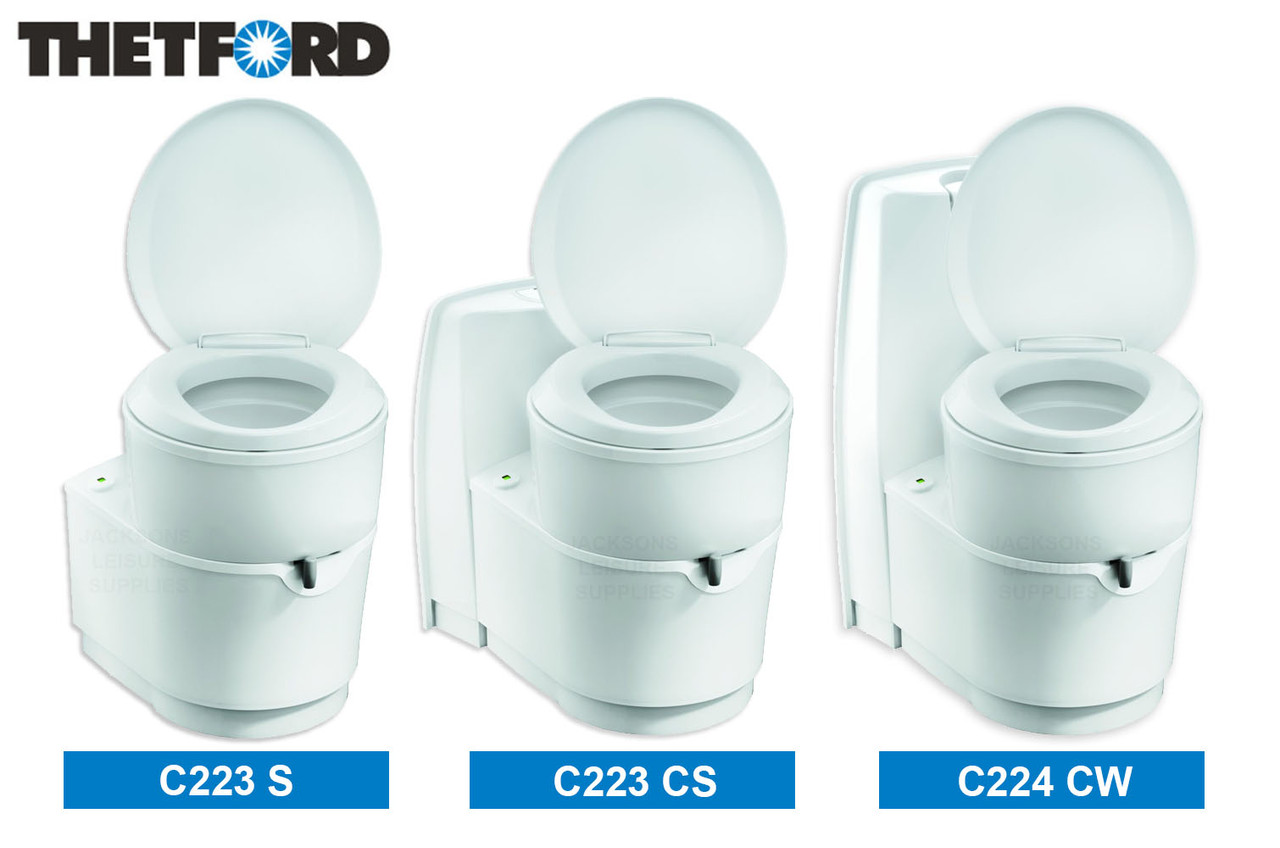

What’s the difference between a CS & S?

The latest versions of the C220 and C260 Thetford Cassette toilets come with two designs, a CS and S but what’s the difference?

The CS has been around for some time and comes with “cistern” or back plate, this allows for the toilet to be surface mounted to the wall whilst also housing the control panel and flush button. The S does not come with a “cistern” and requires part of the toilet to be recessed into the wall including control panel and flush button to be wall mounted.

Manuals:


 Please note these toilets are not supplied with templates.


Thetford Comparison Chart



Technical Specifications:

Dimensions H x W x D (mm):
534 x 394 x 580
Seating Height (mm):
492
Central Water Tank Connection:
Yes
Colour:
White
Flushing System:
Electric
Capacity Waste Holding Tank (L):
18
Capacity Flush Water Tank (L):
-
Waste Tank on Wheels:
Yes
Removable Mechanism:
No
Bowl Material:
Plastic
Waterfill Door Required:
No
Net Weight (kg):
7.2
Write a Review
  • Thetford C223CS
    5

    Posted by Uncle bob on 14th Sep 2021

    After carefully measuring to check it could be installed to align with the current service door I ordered C223CS to replace our Dometic unit. Jacksons offered a competitive price and delivered within a couple of days.
    The installation need care but proved almost a straight swop, small change to the pipe connection from the vans onboard water tank. Good product and a big improvement over the Dometic.

  • Cassette toilet
    5

    Posted by dean farrell on 23rd May 2021

    Great product for the price can’t wait to get it fitted in the latest conversion

  • Thetford C223CS Caravan & Motorhome Cassette Toilet
    5

    Posted by Tony Dilger on 24th Mar 2021

    We have had 3 motorhomes over 15 years and they all had Thetford toilets. All have been completely reliable and we've never once had an issue. Let's be honest, of all the facilities in a motorhome. it's the one thing you don't want to mess with if it goes wrong. Fortunately, these Thetfords just do their job without a hitch. Now we are building a campervan for the first time, so a Thetford toilet was the natural choice. It is now in situ and I have to say the installation was easier than expected. A great product, well designed, easy to fit and reliable in use.

  • Thetford C223CS
    4

    Posted by Kerry on 15th May 2017

    This is the updated version of the C200. For 6 years we have used and grumbled about the Dometic loo in the caravan (leaks, smells, needs regular lubrication) so at last we've bit the bullet and removed it for this updated Thetford loo. All fits well. The installation book is a little hard to follow as it covers all C223 models. Also the wiring diagram gives no wire colours so needs an inspired guess as to which is +ve and which is -ve. Black -ve. Red +ve. Not too difficult!
    We have used Thetford loos for 37 years in the caravan (except for the last 6) and 4 years in our narrowboat. Good products.
    The one star is lost for the lack of wiring info.
